Camlock Spool Adapter
'Cam and Groove' spool adaptors, male x male, male x female and female x female. 'Cam and Groove' spool adaptors are particularly suitable for providing a bridge between two different hose sizes.
How to specify your 'Cam and Groove' spool adaptors.

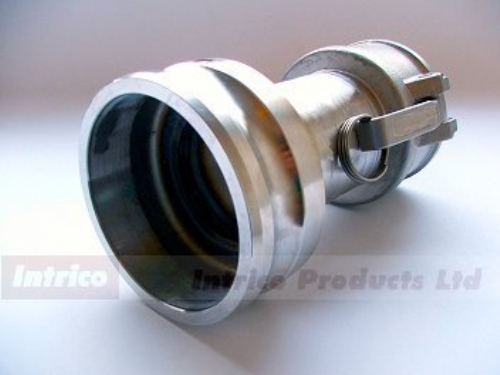

Use the material, followed by the first coupling type and then the second coupling type and size,for example SSC400xE500 (as shown in the picture above).
| Material | Type | Size | Type | Size |
|---|---|---|---|---|
| SS - Stainless Steel | C - Coupler | 1" - 100 | C - Coupler | 1" - 100 |
| AL - Aluminium | E - Adaptor | 1-1/4" - 125 | E - Adaptor | 1-1/4'' - 125 |
| PP - Polypropylene | 1-1/2" - 150 | 1-1/2" - 150 | ||
| 2" - 200 | 2" - 200 | |||
| 2-1/2" - 250 | 2-1/2" - 250 | |||
| 3" - 300 | 3" - 300 | |||
| 4" - 400 | 4" - 400 | |||
| 6" - 600 | 6" - 600 |
Please call if you require something not shown.
Other types of 'Cam and Groove' adaptors are readily available. Shown below is a polypropylene 2" male x 3" Bspt male thread.
