Diffuser Jet/Spray Nozzle
Short pattern diffuser nozzles offer both jet and spray patterns by rotating the barrel. Manufactured in Alloy or Gunmetal.
DO5-A and DO5-A-GM Short Pattern Diffuser Nozzles.
| Part Number | Inlet | Material | Net Price each net ex works |
|---|---|---|---|
| DO5-A | 2-1/2" | Alloy | £44.65 |
| DO5-A-GM | 2-1/2" | Gunmetal | £96.50 |
| DO5-B | 1-1/2" | Gunmetal only | £144.05 |
| DO5-C | 1" Bsp | Gunmetal only | £85.25 |
Please note that these prices are nett, unlike other prices on the website.
Our standard diffuser nozzles, shown above, are twist operated and are supplied with an integral 2-1/2" BS336 Instantaneous male inlet.
Control of the nozzle is achieved by gripping the rubber ring and turning from shut off through jet and spray to a wide angle curtain.
The rubber ring also provides protection from impact damage if dropped.
The standard inlet is a male 2-1/2" Instantaneous to BS336.
Control of the nozzle is achieved by gripping the rubber ring and turning from shut off through jet and spray to a wide angle curtain.
The rubber ring also provides protection from impact damage if dropped.
The standard inlet is a male 2-1/2" Instantaneous to BS336.
A nozzle withan 1-1/2" (Feta approved) Instantaneous coupling can be ordered by using the B suffix. Using the suffix C orders a 1" Bsp female item. We can supply all standard coupling systems by using this item and an adapter.
| Inlet Pressure Bar |
Type 'A' Flow L/min |
Type 'B' Flow L/min |
|---|---|---|
| 3 | 55 | 35 |
| 5 | 55 | 35 |
| 7 | 55 | 35 |

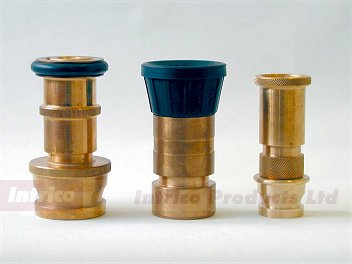

DO5-A-GM, DO5-C and DO5-B Diffuser Nozzles.
We also supply the Fire Hose assemblies.
