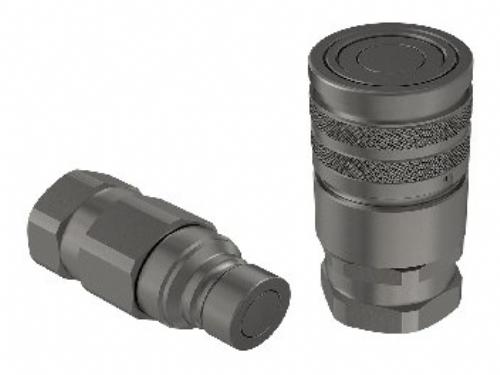

FFH Flat Face Series
Flat face couplings, ISO 16028 interchange, 35 MPa series. Flat-Face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange. Size 1/8" has surface treatment in Mate 500 (CrIII) and it is not ISO interchangeable.
| Body Size |
Thread Size |
Coupling Part No. |
Nipple Part No. |
| 1/8" | 1/8" BSP |
FFH0218GASF | FFH0218GASM |
| 1/8" | 1/4" BSP |
FFH0214GASF | FFH0214GASM |
| 1/4" |
1/4" BSP |
FFH0414GASF | FFH0414GASM |
| 3/8" | 3/8" BSP |
FFH0638GASF | FFH0638GASM |
| 3/8" | 1/2" BSP |
FFH0612GASF | FFH0612GASM |
| 1/2" | 1/2" BSP |
FFH0812GASF | FFH0812GASM |
| 1/2" | 3/4" BSP |
FFH0834GASF | FFH0834GASM |
| 5/8" | 5/8" BSP |
FFH1058GASF | FFH1058GASM |
| 3/4" | 3/4" BSP |
FFH1234GASF | FFH1234GASM |
| 3/4" | 1" BSP |
FFH121GASF | FFH121GASM |
| 1" | 1" BSP |
FFH161GASF | FFH161GASM |
| 1" | 1-1/4" BSP |
FFH16114GASF | FFH16114GASM |
As well as BSP we can also offer other threads like NPT, JIC & Metric threads.
