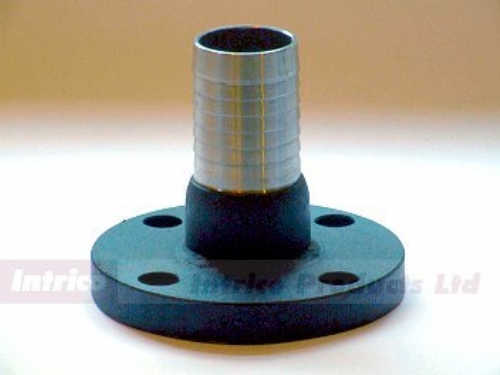

Flanged Hose Tails
'Flanged Hosetails' are available in carbon steel, fixed type up to 6" from stock. Sizes up to 12" are readily available. Stainless Steel 304/316 and swivel types are made to order.
Flanged Hosetail, Metric and American
Please call us to discuss your requirement.
| Size | Part Number PN6 (Bar) flange |
Part Number PN16 (Bar) flange |
Part Number ASA150lb flange |
Part Number ASA300lb flange |
|---|---|---|---|---|
| 1" | FHT1CS6 | FHT1CS16 | FHT1CS150 | FHT1CS300 |
| 1-1/4" | FHT125CS6 | FHT125CS16 | FHT125CS150 | FHT125CS300 |
| 1-1/2" | FHT150CS6 | FHT150CS16 | FHT150CS150 | FHT150CS300 |
| 2" | FHT2CS16 | FHT2CS16 | FHT2CS150 | FHT2CS300 |
| 2-1/2" | FHT250CS6 | FHT250CS16 | FHT250CS150 | FHT250CS300 |
| 3" | FHT3CS6 | FHT3CS16 | FHT3CS150 | FHT3CS300 |
| 4" | FHT4CS6 | FHT4CS16 | FHT4CS150 | FHT4CS300 |
| 5" | FHT5CS6 | FHT5CS16 | FHT5CS150 | FHT5CS300 |
| 6" | FHT6CS6 | FHT6CS16 | FHT6CS150 | FHT6CS300 |
We can fabricate all the above items, as well as other not shown, in stainless steel.
For Stainless Steel replace the 'CS' in the part number with 'SS'.
For a swivel flange, suffix the part number with 'SW' for example 'FHT4SS150SW'
Flanged Hosetail, BS10 Table D and E
| Size | Part Number Table D flange |
Part Number Table E flange |
|---|---|---|
| 1" | FHT1CSD | FHT1CSE |
| 1-1/4" | FHT125CSD | FHT125CSE |
| 1-1/2" | FHT150CSD | FHT150CSE |
| 2" | FHT2CSD | FHT2CSE |
| 2-1/2" | FHT250CSD | FHT250CSE |
| 3" | FHT3CSD | FHT3CSE |
| 4" | FHT4CSD | FHT4CSE |
| 5" | FHT5CSD | FHT5CSE |
| 6" | FHT6CSD | FHT6CSE |
We can fabricate all the above items, as well as other not shown, in stainless steel.
For Stainless Steel replace the 'CS' in the part number with 'SS'.
For a swivel flange, suffix the part number with 'SW' for example 'FHT4SSESW'
We are able to fabricate many items not shown, including elbow flanges, jump sizes (up and down) etc.
Please call us to discuss your requirement.
