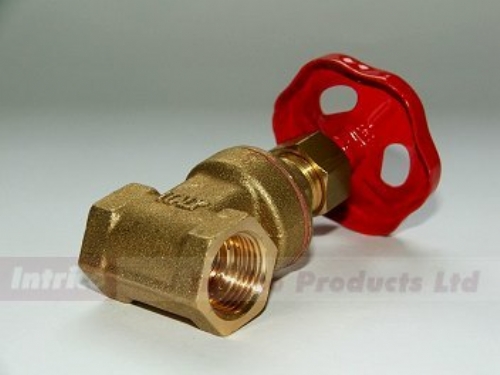

'GV' Brass Gate Valves
Gate Valves, in forged brass, to BS5154 PN20 Bar rated, the 'GV' Gate Valve range is stocked in full bore, long thread, cast handle format.
| NB in ins |
Part Number | List Price ex works |
|---|---|---|
| 1/2" | GV050 | £7.75 |
| 3/4" | GV075 | £10.77 |
| 1" | GV100 | £14.50 |
| 1-1/4" | GV125 | £18.94 |
| 1-1/2" | GV150 | £24.55 |
| 2" | GV200 | £33.35 |
| 2-1/2" | GV250 | £58.25 |
| 3" | GV300 | £67.50 |
| 4" | GV400 | £106.77 |
Standard 'GV' brass gate valves have a forged brass body to UN15705 and a red die cast handle. The stem seals are PTFE. They are stocked with Bspt female x female threads.
'GV' brass gate valves are suitable for PN20 at temperatures from 0OC to 120OC. They are rated at 9 Bar for steam at 100OC.
The bodies are tested to 30 Bar and the seat is tested to 22 Bar.
'GV' brass gate valves can also be supplied with Npt threads and they can be supplied lockable.
