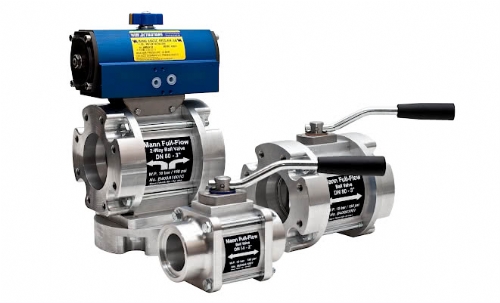

Mann-Tek Ball Valve
'Mann Tek' Ball Valves have a large range of tanker applications such as oil, petrol, diesel and all aviation fuels. 'Mann Tek' Ball Valves are available in standard, 2 Way, actuated with spring return or with pneumatic actuators. A range of connection options can be quoted to suit your application.
| Valve Size | End Connection | End Connection Material |
Part Number |
|---|---|---|---|
| 2" | Body only | None | B200A1101 |
| 2" | 2" Bspp Female |
Aluminium | B210A1101 |
| 2" | 2" Bspp Female |
Steel | B210A1301 |
| 2" | 2" NPT Female |
Aluminium | B211A1101 |
| 2" | 2" Bspp Male |
Aluminium | B278A1101 |
| 2" | Weld End 57mm Dia (2.24") |
Aluminium | B289A1101 |
| 2" | Weld End 60mm Dia (2.36") |
Steel | B290A1301 |
| 2" | Weld End 60mm Dia (2.36") |
Stainless Steel |
B290A1401 |
| 2" | TW1/50 Flange | Aluminium | B487A1101 |
| 3" | Body Only | None | B400A1001 |
| 3" | 3" Bspp Female |
Aluminium | B414A1101 |
| 3" | 3" Bspp Female |
Steel | B414A1301 |
| 3" | 3" NPT Female |
Aluminium | B415A1101 |
| 3" | 3" Bspp Male |
Aluminium | B482A1101 |
| 3" | 3" Bspp Male |
Steel | B482A1301 |
| 3" | Weld End 76mm Dia (2.99") |
Aluminium | B492A1101 |
| 3" | Weld End 76mm Dia (2.99") |
Steel | B492A1301 |
| 3" | Weld End 89mm Dia (3.5") |
Aluminium | B493A1101 |
| 3" | Weld End 89mm Dia (3.5") |
Steel | B493A1301 |
| 3" | Weld End 89mm Dia (3.5") |
Stainless Steel |
B493A1401 |
| 3" | TW1/80 Flange | Aluminium | B465A1101 |
| 3" | DN65 PN10/16 | Aluminium | B433A1101 |
| 3" | DN80 PN10/16 | Aluminium | B436A1101 |
| 3" | 2-1/2" ASA150 | Aluminium | B459A1101 |
| 3" | 3" ASA150 | Aluminium | B461A1101 |
| 4" | Body Only | None | B500A1001 |
| 4" | 4" Bspp Female |
Aluminium | B516A1101 |
| 4" | 4" Bspp Female |
Steel | B516A1301 |
| 4" | 4" NPT Female |
Aluminium | B517A1101 |
| 4" | 4" Bspp Male |
Aluminium | B584A1101 |
| 4" | 4" Bspp Male |
Steel | B584A1301 |
| 4" | Weld End 102mm Dia (4.02") |
Steel | B595A1301 |
| 4" | Weld End 108mm Dia (4.25") |
Aluminium | B596A1101 |
| 4" | Weld End 114mm Dia (4.49") |
Steel | B597A1301 |
| 4" | TW3/100 | Aluminium | B566A1101 |
| 4" | DN100 PN10/16 | Aluminium | B539A1101 |
| 4" | 4" ASA150 | Aluminium | B563A1101 |
'Mann Tek' Full Flow Ball Valves offer the following features :-
- Body in Aluminium, Ball in Aluminium, Stainless Steel spindle, Ball seal in PTFE and end connection seal in Viton
- Spare seal kits readily available.
- New bodies can be fitted between existing end connections.
- Maximum Working Pressure 10 Bar (150 psi).
- No Yellow parts used in the construction
- Spindle seal easily replaced in situ.
- Low pressure drops
- Large, ergonomically designed handles.
Please contact our Sales Department for a quotation. We require the following information:-
- Line size
- End connection type.
- End connection material.
- Any other requirements such as actuation.
- Or, if you have it, the Part Number!
