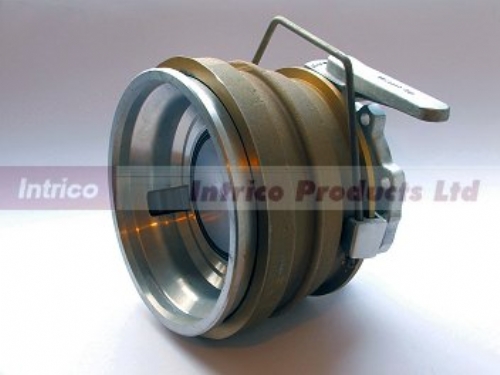

F228 Bottom Loading Coupler

The F228 Bottom Loading Coupler has all the quality and product features expected from Avery Hardoll®. We supply the units fitted with Viton seals as standard. Avery Hardoll® F228 Bottom Loading Couplers are designed in accordance with API RP1004.

Avery Hardoll Data Sheets Data Sheet

Avery Hardoll® F228 Bottom Loading Couplers have the following features:-

  • Push-on, pull-off, one-hand operation, no rotation-no slots.
  • Fully interlocked - can't be opened unless locked and can't be removed until closed.
  • Minimum disconnect spillage with dual seals within API specifications.
  • Floating nose seal provides positive seal under operating conditions.
  • Dust protective sleeve seal.
  • Full flow 4 inch design - 4.7 psi pressure drop thru F228/F443 at 1000 gpm.
  • Light weight design - 13.6 pounds.
  • Four inch NTT flanged inlet as standard, other options on request.
  • Viton seals available on request.

Please contact our Sales Department for a quotation. Our Sales Department personnel will submit our proposal by return.

Product also Known As: API RP1004
