'BKH' High Pressure Ball Valves

General purpose Carbon Steel Ball Valves, the 'BKH' High Pressure range is stocked in full-bore, long thread, cranked steel handle format.

NB
in ins
Part Number Maximum Working
Pressure
Bar
1/8" BKH018 500
1/4" BKH025 500
3/8" BKH038 500
1/2" BKH050 500
3/4" BKH075 400
1" BKH100 350
1-1/4" BKH125 350
1-1/2" BKH150 350

Standard 'BKH' high pressure, carbon steel ball valves have a yellow zinc plated, steel grade 9SMn28K body, with a chrome plated brass ball, POM-MoS2 valve seat and Nitrile stem seals and a steel cranked handle. They are stocked with Bspp female x female threads. 'BKH' high pressure, carbon steel ball valves are suitable for -10OC to 100OC.

'BKH' high pressure, carbon steel ball valves are available in 3 way 'L' and 'T' ported, 4 way and in a variety of other special configurations.

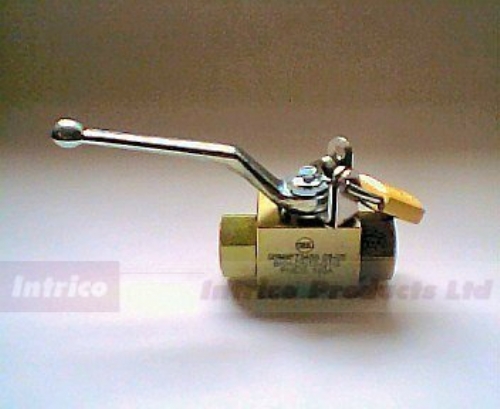

'BKH' high pressure, carbon steel ball valves can also be supplied with female Npt threads or DIN2353 Compression ended, straight steel handles, lockable (as shown above) and with Viton or EPDM seals.

Contact us on 01772 785295 or sales@intricoproducts.com for more details.
