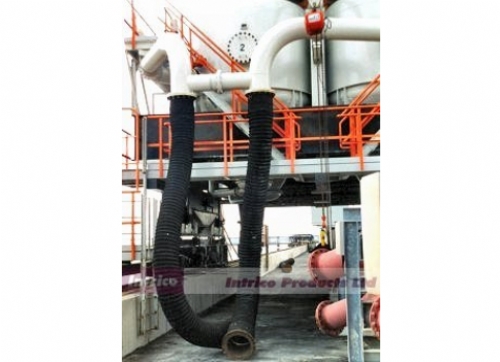

Chemical Suction and Delivery Hose

Specifically designed to convey a wide range of chemicals and aggressive fluids for long periods.

A500, A501, A502, A503, A506 and A515:
Hand built chemical suction and discharge hose.


Sizes: 50mm to 915mm inside diameter

Lengths: Up to and including 300mm id - 19.5 metres long. 356mm id and above - 12 metres long.

Applications: 500 series hoses have been specifically designed to convey a wide range of chemicals and aggressive fluids for longperiods.

Lining: Smooth bore, mandrel built. See table below for options.

Reinforcement: Multiple layers of synthetic cord plus asingle steel helix, giving minimum 3.5:1 safety factor and a minimum bend radius of 6 x bore size.

Pressure: From 10 bars to -0.85 bars. Higher working pressuresare available.
Hose assemblies are tested on request.

Cover: See table below for options.

Specification Lining Material Cover Material
A500 Natural Natural
A501 EPDM EPDM
A502 Neoprene Neoprene
A503 Hypalon® Neoprene
A506 XLPE EPDM
A515 Viton® Neoprene

Couplings: The following types of coupling systems can be specified where the fluid cannot come into contact with any metal parts: Rubber lined, integrally flanged.

Alternatively, carbon steel or stainless steel fittings can be specified: Wired-in, strapped-in or built-in fittings.

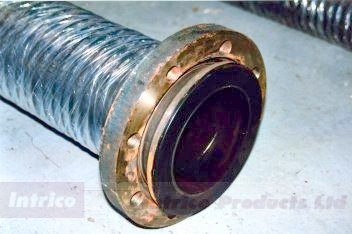

Chemical Hose

Hose with the rubber lining through the fitting and over the flange face.



Please remember that our hoses can be designed to your requirements, if you do not see what you want, please call us.
