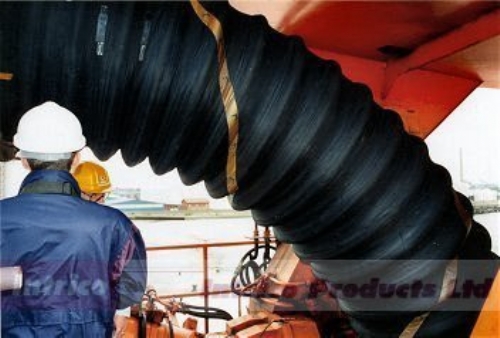

Dredger Separate Ring Suction Hose

Designed for use on hopper and trailing suction dredgers. Also for use with gimbal supports.

A420: Seperate ring dredger hose

Sizes: 254mm to 1000mm inside diameter

Lengths: Up to 12 meters

Applications: Designed for use on outboard systems of suction hopper and trailing suction discharge dredgers where gimbal supportsare used. These dredger hoses or sleeves are capable of high angular deflection over short lengths.

Lining: Smooth bore, mandrel built. Highly abrasion and cut resistant black Natural rubber lining in varying thickness's depending on the severity and life expectancy of the application.

Reinforcement: A substantial carcass of high strength synthetic cords and extremely robust separate rings, embedded in a solid D section of highly resilient rubber, giving maximum resistance to crushing and vacuum collapse.

Pressure: Rated to 10 bars - full vacuum.

Cover: Neoprene rubber for excellent resistance to abrasion, weathering, oils, grease and seawater.

Couplings: We can offer various solutions depending on the application, installation, medium and customer requirements.

Please remember that our hoses can be designed to your requirements, if you do not see what you want, please call us.
