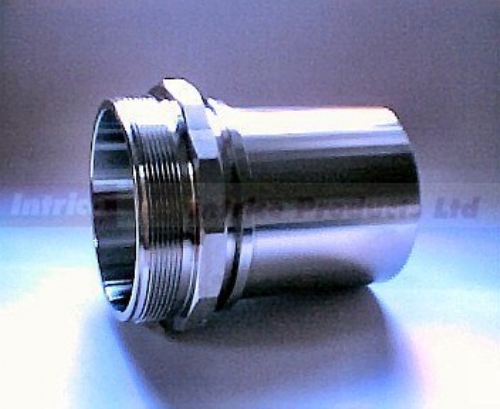

EN ISO 14420-2-5 (DIN 2817) 'Safety' Male Couplings

EN ISO 14420-2-5 (DIN 2817) 'Safety' couplings with Male Bsp parallel threads, specifically for use with EN ISO 14420-3 (DIN 2817) clamps. These fittings are available in brass and stainless steel grade 316.

Brass Male x Hosetail
Hose size
in mm
Thread size
Bspp
Part Number
13 1/2" SM13B
19 3/4" SM19B
25 1" SM25B
32 1-1/4" SM32B
38 1-1/2" SM38B
50 2" SM50B
65 2-1/2" SM65B
75 3" SM75B
100 4" SM100B
Npt available in some sizes, to order.

Stainless Steel Male x Hosetail
Clamp size
Bore x Wall
in mm
Hose OD
in mm
Part Number
13 1/2" SM13SS
19 3/4" SM19SS
25 1" SM25SS
32 1-1/4" SM32SS
38 1-1/2" SM38SS
50 2" SM50SS
65 2-1/2" SM65SS
75 3" SM75SS
100 4" SM100SS
Jump sizes and npt available to order.


EN ISO 14420-2-5 (DIN 2817) 'Safety' couplings are specifically designed for use with EN ISO 14420-3 (DIN 2817) clamps. The hosetails have no serrations or ribs and therefore should not be used with any other clamping system.

The clamp and hosetail system is double locked, unlike other bolt or band clamps. It offers more security than all but the heaviest swage ferrules but offers the advantage of being able to repair or replace the hose.

The 'Safety' hosetails are made to suit metric hose. Customers should satisfy themselves that they are suitable for use with any imperial hose.

Use these couplings with our EN ISO 14420-3 (DIN 2817) 'Safety' Clamps.
