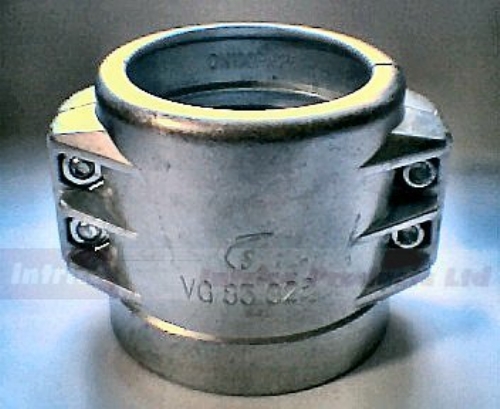

EN ISO 14420-3 (DIN 2817) 'Safety' Clamps

EN ISO 14420-3 (DIN 2817) 'Safety' clamps are, without doubt, the most secure clamps available. They are available in aluminium and stainless steel. EN ISO 14420 (DIN 2817) 'Safety' clamps are rated to 25 Bar in all sizes and materials.

Aluminium Clamps
Clamp size
Bore x Wall
in mm
Hose OD
in mm
Part Number
13 x 5.0 22 - 24 SC13x5AL
19 x 6.0 30 - 33 SC19x6AL
25 x 6.0 36 - 39 SC25x6AL
32 x 6.0 43 - 46 SC32x6AL
38 x 6.5 50 - 52 SC38x6.5AL
50 x 8.0 64 - 67 SC50x8AL
50 x 10.0 69 - 71 SC50x10AL
63 x 8.0 78 - 82 SC63x8AL
63 x 10.0 84 - 87 SC63x10AL
75 x 8.0 89 - 93 SC75x8AL
75 x 10.0 94 - 97 SC75x10AL
100 x 8.0 114 - 119 SC100x8AL
125 x 10.0 143 - 148 SC125x10AL
150 x 10 168 - 174 SC150x10AL
200 x 12.0 222 - 229 SC200x12AL



Stainless Steel Clamps

Clamp size
Bore x Wall
in mm
Hose OD
in mm
Part Number
25 x 6.0 36 - 39 SC25x6SS
38 x 6.5 50 - 52 SC38x6.5SS
50 x 8.0 60 - 67 SC50x8SS
75 x 8.0 89 - 93 SC75x8SS



EN ISO 14420 (DIN 2817) 'Safety' clamps are specifically designed for use with EN ISO 14420 (DIN 2817) hosetails fittings. The large rounded teeth inside the clamp halves securely grip the strong, tough hose cover, whilst the end of the clamp fits securely in to the groove on the hose tail.

The smooth hosetail ensures that no damage is done to the softer, weaker and more vunerable hose lining.

This system is therefore double locked, unlike other bolt or band clamps. It offers more security than all but the heaviest swage ferrules but offers the advantage of being able to repair or replace the hose.

EN ISO 14420 (DIN 2817) clamps are light, particularly in Aluminium, and they have rounded profiles so they are both easy and safe to handle. This contrasts with products like bolt clamps which are extremely heavy and have bolts protruding, which constitute a considerable hazard.

These fittings are only suitable for use with metric hose.

Use these clamps with our EN ISO 14420 (DIN 2817) 'Safety' hosetail fittings.
