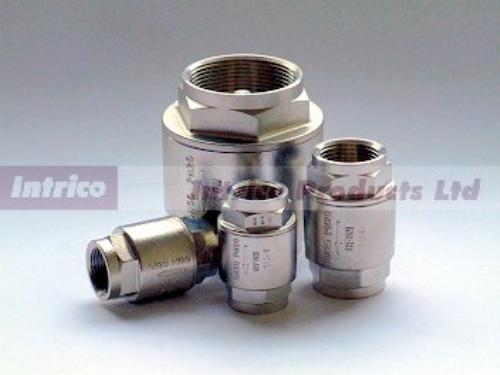

Stainless Steel Foot Valves
Our Non Return Valves are ideal for general purpose usage. 'Cromax' Non Return Valves are supplied in sizes above 2"nb. 'Cromax' Non Return Valves are also known as check valves.
| Size | Part Number Stainless Steel Grade 304 |
Part Number Stainless Steel Grade 316 |
Maximum Working Pressure in Bar |
|---|---|---|---|
| 1/2" | CRO015316 | 20 | |
| 3/4" | CRO020316 | 20 | |
| 1" | CRO025316 | 20 | |
| 1-1/4" | CRO032316 | 20 | |
| 1-1/2" | CRO040316 | 20 | |
| 2" | CRO050316 | 20 | |
| 2-1/2"22 | CRO065304 | CRO065316 | 20 |
| 3" | CRO075304 | CRO075316 | 20 |
| 4" | CRO100304 | CRO100316 | 20 |
Please note that a correction factor should be applied to the working pressure above 20OC.
The Non Return Valveshave the following features:-
- Stainless Steel body
- Seal in Viton
- Maximum opening pressure 0.03 Bar
- Differential pressure 0.20 Bar
- Bspp female inlet
- Maximum working temperature 150OC
- Minimum working temperature -20OC
Intrico's Non Return Valves are suitable for use in a wide range of applications due to the rugged design and the materials of construction.
These Non Return Valves can be fitted with a strainer for use as a foot valve.
'Non Return Valves' are also available in Brass.
