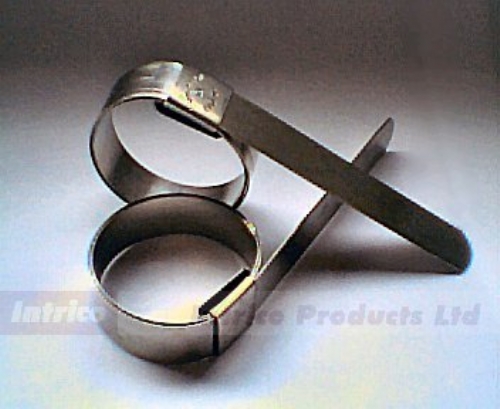

Punch-Lok Clamps
Double wrapped and triple locked 'Punch-Lok' Clamps hold things tightly, tidily and permanently!
| I.D. as supplied in mm |
Part No | Clamp Width in mm (ins) |
Quantity per box |
List Price per box ex works |
|---|---|---|---|---|
| 21.0 | P-3-S | 9.5 (3/8") | 100 | £46.25 |
| 35.0 | P-311-S | 9.5 (3/8") | 100 | £51.94 |
| 25.4 | P-4-S | 16 (5/8") | 100 | £73.84 |
| 32.0 | P-5-S | 16 (5/8") | 100 | £75.50 |
| 38.1 | P-6-S | 16 (5/8") | 100 | £84.40 |
| 44.4 | P-7-S | 16 (5/8") | 100 | £88.44 |
| 50.8 | P-8-S | 16 (5/8") | 100 | £97.36 |
| 57.1 | P-9-S | 16 (5/8") | 100 | £103.04 |
| 63.5 | P-10-S | 16 (5/8") | 50 | £53.96 |
| 69.8 | P-11-S | 16 (5/8") | 50 | £56.40 |
| 76.2 | P-12-S | 16 (5/8") | 50 | £59.24 |
| 88.9 | P-14-S | 16 (5/8") | 50 | £66.12 |
| 101.6 | P-16-S | 16 (5/8") | 25 | £37.12 |
| 114.3 | P-18-S | 16 (5/8") | 25 | £39.36 |
| 127.0 | P-20-S | 16 (5/8") | 25 | £42.60 |
| 152.0 | P-24-S | 16 (5/8") | 25 | £48.70 |
| 165.0 | P-26-S | 16 (5/8") | 50 | £106.30 |
| 178.0 | P-28-S | 16 (5/8") | 50 | £110.36 |
| 203.0 | P-30-S | 16 (5/8") | 50 | £122.50 |
'Punch-Lok'® Pre-Formed Clamps are stocked in Stainless Steel grade 201 material which is particularly suitable for high tensile hose clamping applications. It also offers corrosion resistance.
Supplied ready for use, 'Punch-Lok'® Pre-Formed Clamps are the fastest method of Band Clamping available. To use the 'Punch-Lok'® Pre-Formed Clamp, simply insert the hose and fitting into the clamp, slide the P-1000 Tool up the clamp 'tail' to the Lok, tighten the clamp using the ball ended handle, 'Punch' the 'Lok' using a hammer onthe punch head and then lift the tool over the Lok to snap off the surplus tail.
'Punch-Lok'® Pre-Formed Clamps are also available in high strength galvanised carbon steel in exactly the same sizes. These clamps are readily available and are suitable for most applications. They offer a low cost alternative to stainless steel. Please ask for pricing.
'Punch-Lok'® diameters are normally generous, however, if you are in any doubt, please select the next clamp diameter up.
Also available, in sizes up to 300mm inside diameter, are a range of clamps which are non-spring, pre-coiled to a specific diameter. They are not laced up through the Lok and are for use in applications where a Pre-Formed clamp cannot be placed over the end of a hose.
