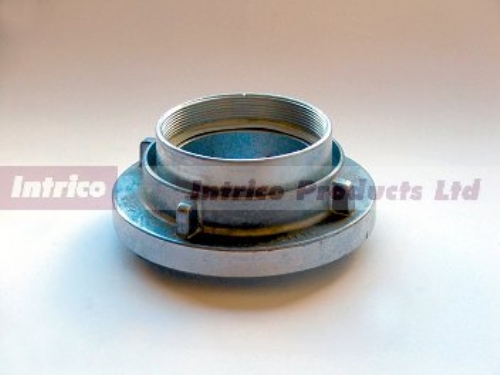

Storz Swivel Head x Female Thread
Forged Aluminium, fitted with white Nitrile delivery seals and white rubber thread seal as standard.
| Storz Size | Ka in mm |
To suit Hose Size |
Part Number |
|---|---|---|---|
| 25-D | 31 | 1" | N-25-SW |
| 52-C | 66 | 1-1/4" | N-52/B-SW |
| 52-C | 66 | 1-1/2" | N-52/A-SW |
| 52-C | 66 | 2" | N-52-SW |
| 75-B | 89 | 2-1/2" | N-75-SW |
| 75-B | 89 | 3" | N-75/A-SW |
| 110-A | 133 | 4" | N-110-SW |
Fitted with a seal suitable for delivery applications as standard, this 'Storz' can also befitted with a suction and delivery seal if required. The white nitrile seals are suitable for food applications. Black nitrile, Viton or EPDM gasket are all available to order if required. Some 'Storz' Swivel Head items are also available in Brass and Stainless Steel. The couplings are normally secured using a Spanner which is also available from stock.

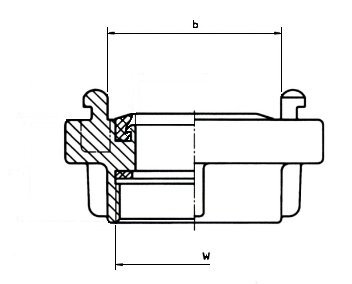

| Part Number | b (Ka) in mm |
W Bspp |
Max Working Pressure in Bar |
|---|---|---|---|
| N-25-SW | 31 | 1" | 16 |
| N-52/B-SW | 66 | 1-1/4" | 16 |
| N-52/A-SW | 66 | 1-1/2" | 16 |
| N-52-SW | 66 | 2" | 16 |
| N-75-SW | 89 | 2-1/2" | 16 |
| N-75/A-SW | 89 | 3" | 16 |
| N-110-SW | 133 | 4" | 16 |
All 'Storz' couplings, regardless of material or type, which have the same Ka dimension are suitable for use with each other. This feature make the 'Storz' system ideal inapplications where hoses or piping of different sizes need to be joined with the minimum of number of adaptors.
