Storz x Female Thread

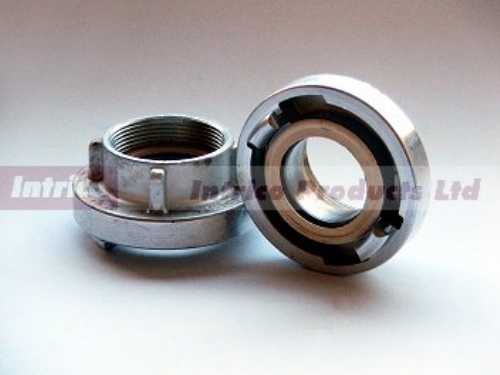

Storz in Forged Aluminium, fitted with Nitrile seals and rubber thread seal as standard. Storz are also available in Brass and Stainless Steel.
| Storz Size | Ka in mm |
To suit Bspp Size |
Part Number |
|---|---|---|---|
| 25-D | 31 | 1" | N-25 |
| 38 | 51 | 1-1/2" | N-38 |
| 38 | 51 | 2" | N-38/A |
| 52-C | 66 | 1-1/4" | N-52/B |
| 52-C | 66 | 1-1/2" | N-52/A |
| 52-C | 66 | 2" | N-52 |
| 52-C | 66 | 2-1/2" | N-52/B |
| 65 | 81 | 2" | N-65/A |
| 75-B | 89 | 2-1/2" | N-75 |
| 75-B | 89 | 3" | N-75/A |
| 110-A | 133 | 4" | N-110 |
| 125 | 148 | 4" | N-125/A |
| 125 | 148 | 5" | N-125 |
| 150 | 160 | 6" | N-150 |
| 165 | 188 | 6" | N-165 |
| 205 | 220 | 8" (10 Tpi) |
N-205 (2 Lug = PN10) |
| 225 | 220 | 8" (10 Tpi) |
N-205-3 Lug (3 Lug = PN16) |
Fitted with a seal suitable for suction and delivery applications as standard, these 'Storz' couplings can also be fitted with a delivery seal if required. The white nitrile seals are suitable for food applications. Black nitrile, Viton or EPDM gasket are all available to order if required. All 'Storz' items are also available in Cast Aluminium, Brass and Stainless Steel. The 'Storz' x female thread coupling can be supplied in a variety of different types including a swivelling head or a locking head. 'Storz' couplings are normally secured using a Spanner which are available from stock.

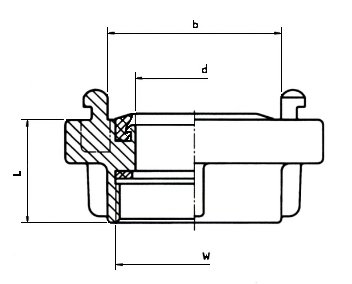

| Part Number | b (Ka) in mm |
W Bspp |
d in mm |
L in mm |
Burst Pressure in Bar |
Max Working Pressure in Bar |
Weight in Kgs |
|---|---|---|---|---|---|---|---|
| N-25 | 31 | 1" | 18 | 28 | 25 | 16 | 0.10 |
| N-52/B | 66 | 1-1/4" | 26 | 36 | 35 | 16 | 0.24 |
| N-52/A | 66 | 1-1/2" | 36 | 36 | 35 | 16 | 0.24 |
| N-52 | 66 | 2" | 44 | 36 | 35 | 16 | 0.24 |
| N-75 | 89 | 2-1/2" | 64 | 40 | 35 | 16 | 0.40 |
| N-75/A | 89 | 3" | 64 | 40 | 35 | 16 | 0.40 |
| N-110 | 133 | 4" | 100 | 46 | 35 | 16 | 0.91 |
All 'Storz' couplings, regardless of material or type, which have the same Ka dimension are suitable for use with each other. This feature make the 'Storz' system ideal in applications where hoses or piping of different sizes need to be joined with the minimum of number of adaptors.
