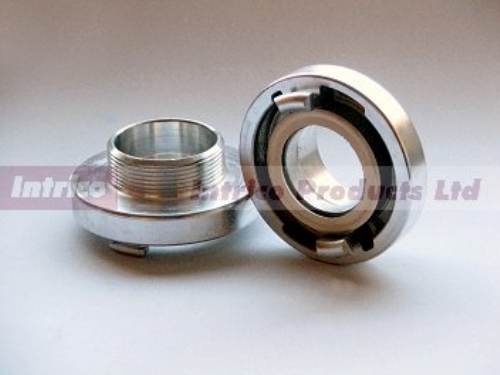

Storz x Male Thread

Storz in Aluminium, fitted with Nitrile seals as standard. Storz are also available in Brass and Stainless Steel.


Storz Size Ka
in mm
To suit
Bspp Size
Part Number
25-D 31 1" N-25z
52-C 66 1-1/2" N-52z/A
52-C 66 2" N-52z
52-C 66 2-1/2" N-52z/B
75-B 89 2-1/2" N-75z
75-B 89 3" N-75z/A
110-A 133 4" N-110z


Fitted with a seal suitable for delivery applications as standard, this Storz can also be fitted with a suction and delivery seal if required. The white nitrile seals are suitable for food applications. Black nitrile, Viton or EPDM gasket are all available to order if required. All 'Storz' are also available in Forged Aluminium, Brass and Stainless Steel. The Storz x male coupling can be supplied in a variety of different types including a swivelling head or a metal seat. The couplings are normally secured using a Spanner which is also available from stock.

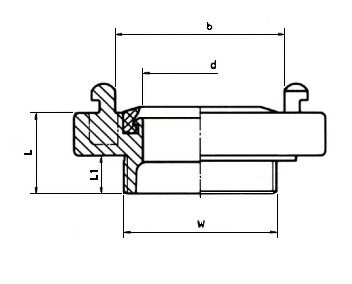

Storz x Male

Part Number b (Ka)
in mm
W
Bspp
d
in mm
L
in mm
L1
in mm
Burst
Pressure
in Bar
Max Working
Pressure
in Bar
Weight
in Kgs
N-25z 31 1" 18 31 19 25 16 0.10
N-52z/A 66 1-1/2" 44 36 19 35 16 0.24
N-52z 66 2" 44 36 19 35 16 0.24
N-75z 89 2-1/2" 64 40 22 35 16 0.42
N-75z/A 89 3" 64 40 22 35 16 0.45
N-110z 133 4" 100 46 24 35 16 0.90

All Storz couplings, regardless of material or type, which have the same Ka dimension are suitable for use with each other. This feature make the Storz system ideal in applications where hoses or piping of different sizes need to be joined with the minimum of number of adaptors.
