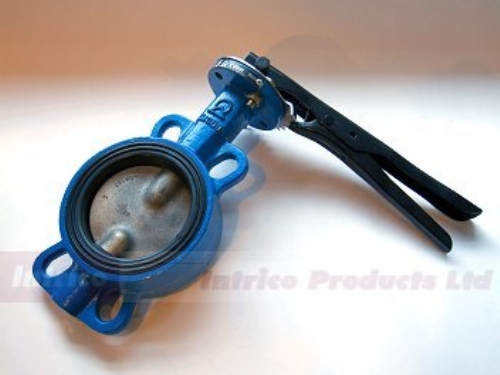

Wafer Pattern Butterfly Valves

Butterfly Valves, with a cast iron body and with disc/seat options shown below.

NB
in ins
Part Number
WCB Disc
Part Number
316 S/S Disc
Operator Width
Face to Face
1-1/2"" CIBV150/CS CIBV2150/SS Lever 40mm
2"" CIBV200/CS CIBV200/SS Lever 43mm
2-1/2"" CIBV250/CS CIBV250/SS Lever 46mm
3"" CIBV300/CS CIBV300/SS Lever 46mm
4"" CIBV400/CS CIBV400/SS Lever 52mm
5"" CIBV500/CS CIBV500/SS Lever 56mm
6"" CIBV600/CS CIBV600/SS Lever 56mm
8"" CIBV800/CS CIBV800/SS Lever or Gearbox 60mm
10"" CIBV1000/CS CIBV1000/SS Gearbox 68mm
12"" CIBV1200/CS CIBV1200/SS Gearbox 78mm

CS suffix are WCB carbon steel electro nickel plated disc and stainless steel grade 410 stem - NBR seat ring.

SS suffix are stainless steel grade 316 disc and stem - EPDM seat ring.

Our wafer pattern Butterfly valves are manufactured to BS5155 and API-609 standards and are tested to BS6755 Part 1. They are rated to 16 bar maximum CWP up to 12" bore as standard.

Wafer pattern Butterfly valves have a universal fitting to suit ANSI 150lb and DIN NP10/16 flanges. All of our Butterfly valves are supplied with an ISO5211 top mounting flange suitable for actuation.

Larger valves and other trim specifications are also available.
